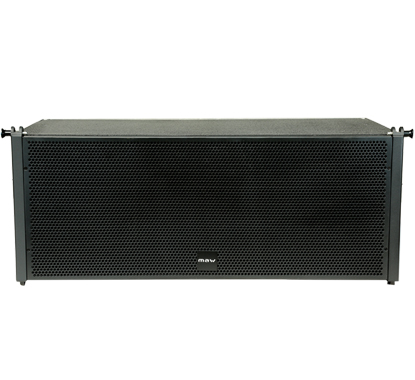

Wave -1
Wave -1
Technical specifications
| Model | WAVE -1 |
| Type | Line array system |
| Frequency Response | 50Hz- 20KHz 3dB |
| Total Power | 1900W RMS |
| Power handling | LF 2 x 600W(RMS)2 x 1200(PEAK) MF 500W (RMS)1200W (PEAK) HF 200W(RMS)400W(PEAK) |
| Sensitivity | LF 106dB(1W@1M) MF 108dB(1W@1M) HF 112dB(1W@1M) |
| Max @ S.P.L | LF 137dB(PEAK/1M) MF 136dB(PEAK/1M) HF 135dB(PEAK/1M) |
| LF section | 2 x 12”(310mm)neodymium woofer 75mm(3in) coill |
| Nominal impedance | 8 ohm |
| MF section | 2 x 8”(210mm)neodymium MF 65mm(2.5in) coil |
| Nominal impedance | 8 ohm |
| HF section | 2 x 3 neodymium compression driver with 75mm titanium diaphragm |
| Nominal impedance | 16 ohm |
| Output section | 3-channel |
| Dispersion pattern | 110o H x7.5o V |
| Finish | Water-proof, wear-resistant textured black paint |
| Input connectors | 2 x Neutrik NL8 |
| Recommend crossover | LF 60Hz-250Hz MF 250Hz-1.8Khz HF 1.8Khz-20Khz |
| Dimensions | 934 x 360 x 530mm(W x H x D) |
| Package dimensions | 1000 x 430 x 600mm/0.26cbm |
| Enclosure | Birch Plywood |
| Net weight | 54kg |
| Gross weight | 60kg |
